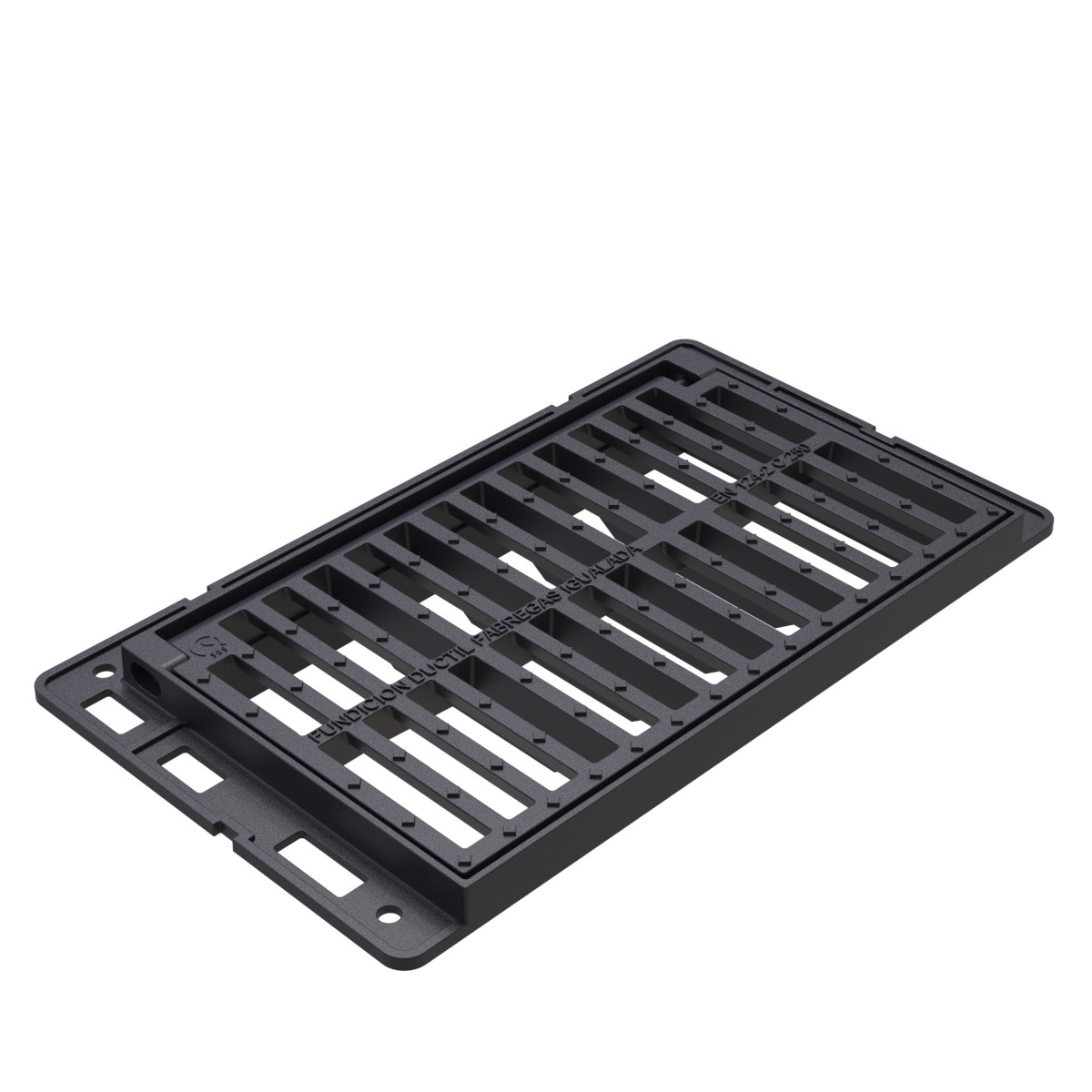

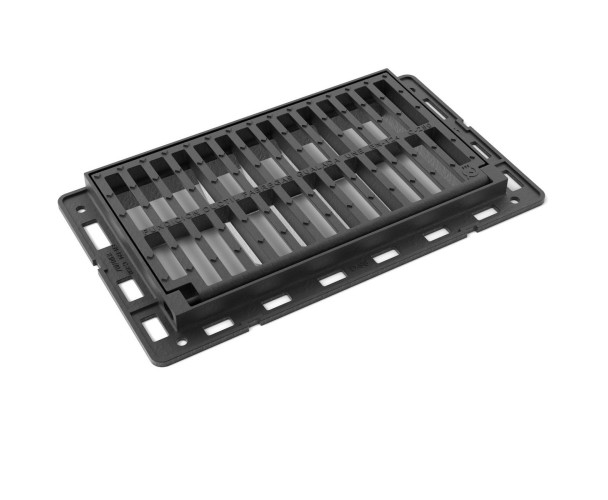

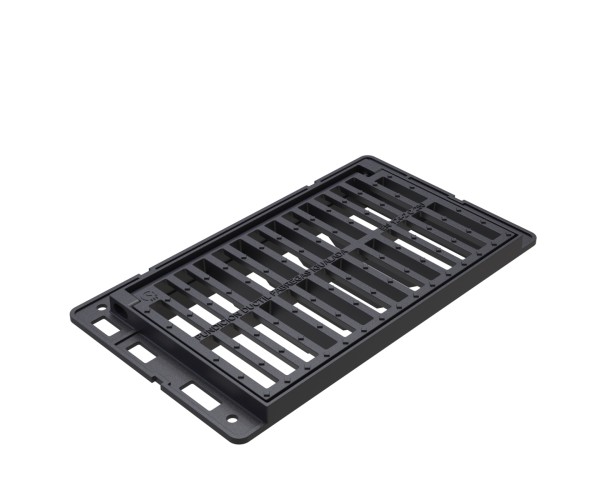

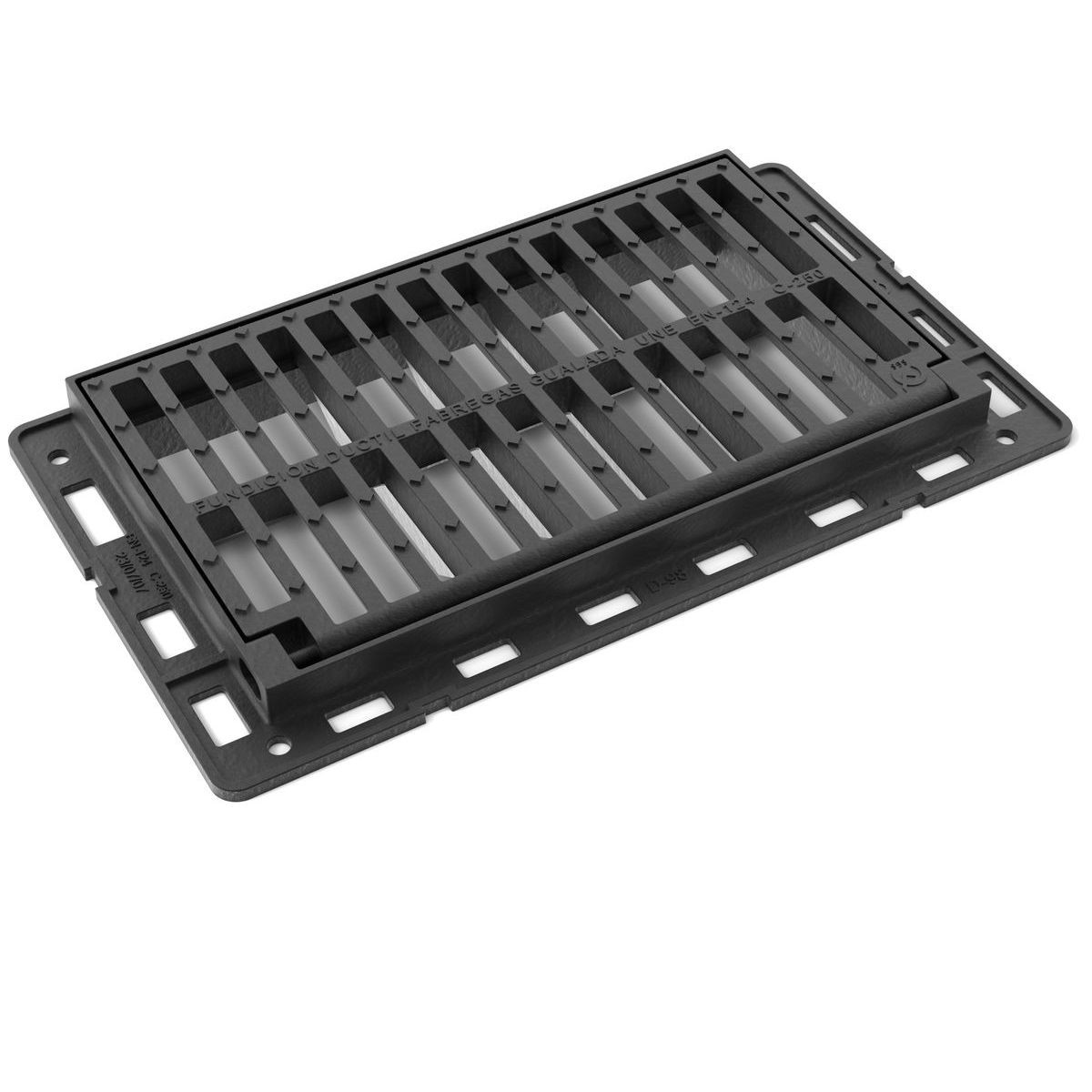

Oporto folding scupper grate and frame in ductile castingl D-98 Expand

Grate and Frame

D-98

New

Grate and frame type oporto of 720x420 mm. In ductile casting for 25 TM. Of breaking load. It conforms the standard UNE EN-124 class C-250
If you want to see the prices and make orders you must create an account.
If you are a customer, access your account.

ClassC 250
NormEN 124-2
Outside width419.70 mm
Outside length729.50 mm
Height80.00
Clearance dimension X297.00 mm
Clearance dimension Y549.20 mm
Clearance dimension297.00 mm
