Manhole Cover and Frame 30x30
D-14
New

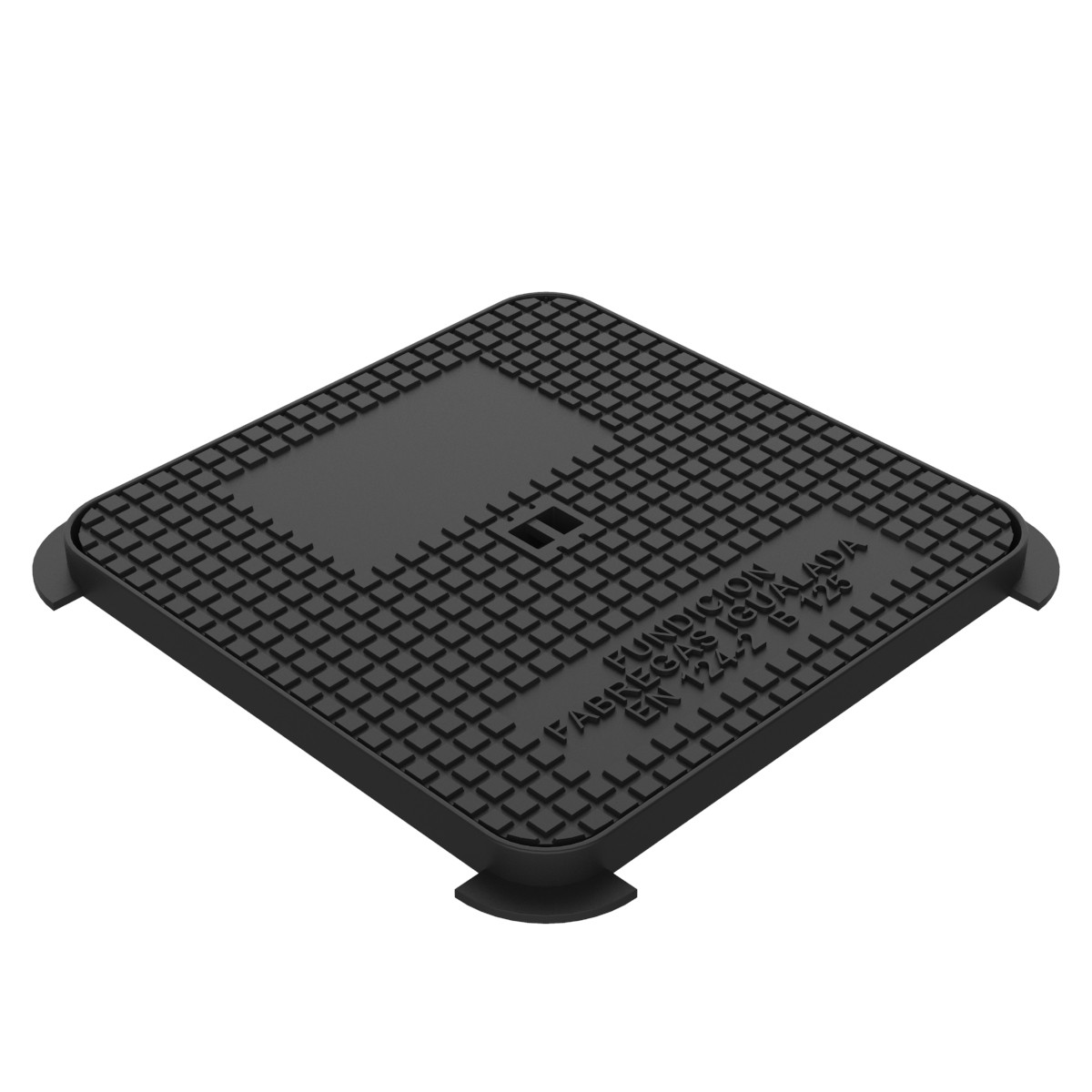

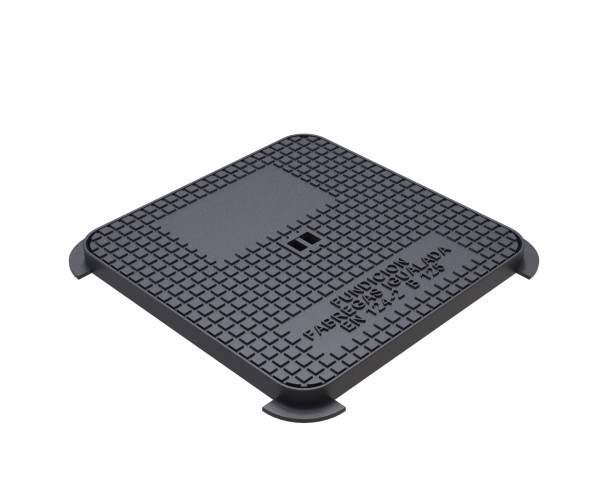

Hydraulic cover and frame assembly to prevent odors from escaping. Non-slip textured surface. External dimensions: frame 330 x 330 x 20 mm, cover 290 x 290 mm, and clear opening 255 x 255 mm. Manufactured from ductile iron according to UNE-EN 1563, class EN-GJS-500-7. Complies with UNE-EN 124-2, class B125. Finished with black acrylic paint. Finished with asphalt black paint.
| Class | B 125 |
| Norm | EN 124-2 |
| Outside width | 330.00 mm |
| Outside length | 330.00 mm |
| Height | 20.00 |
| Clearance dimension X | 255.00 mm |
| Clearance dimension Y | 255.00 mm |
